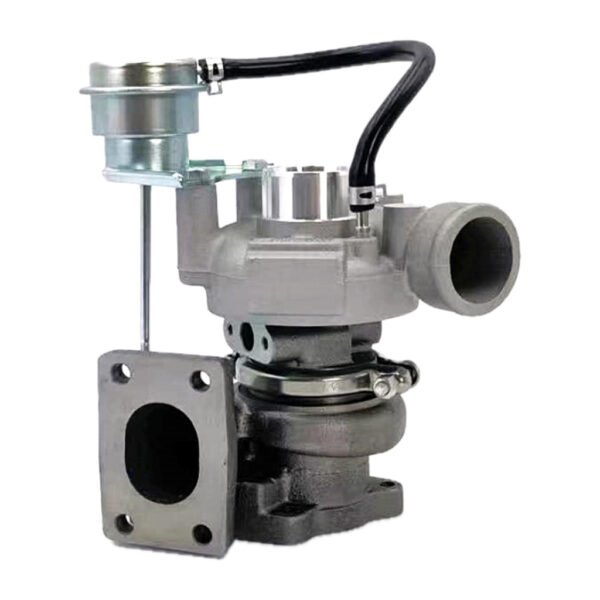

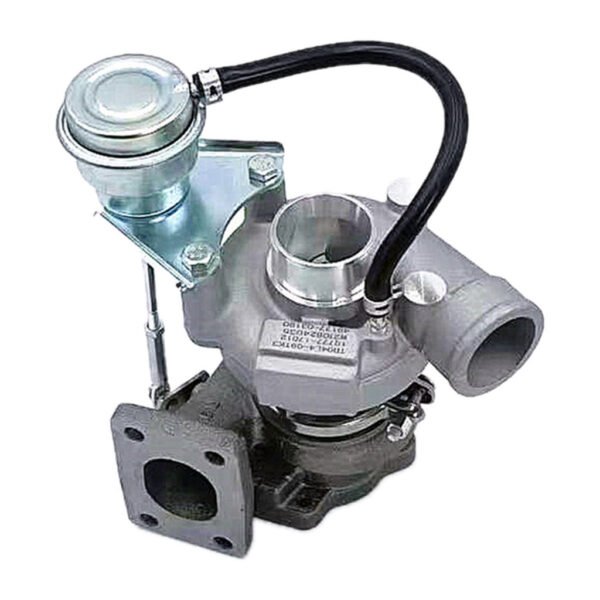

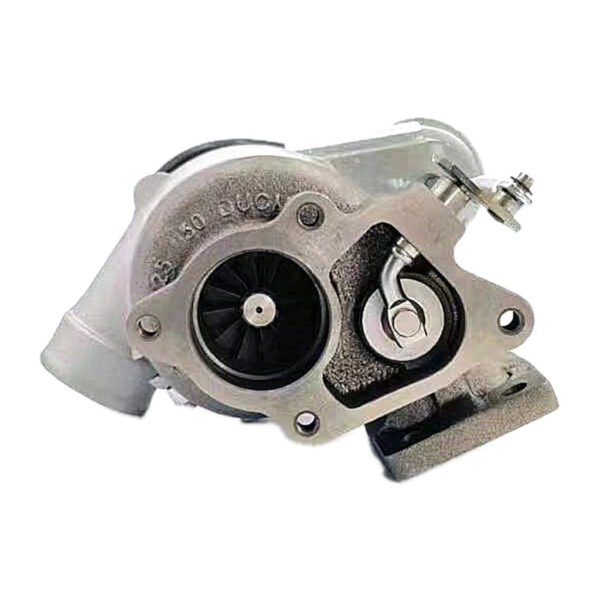

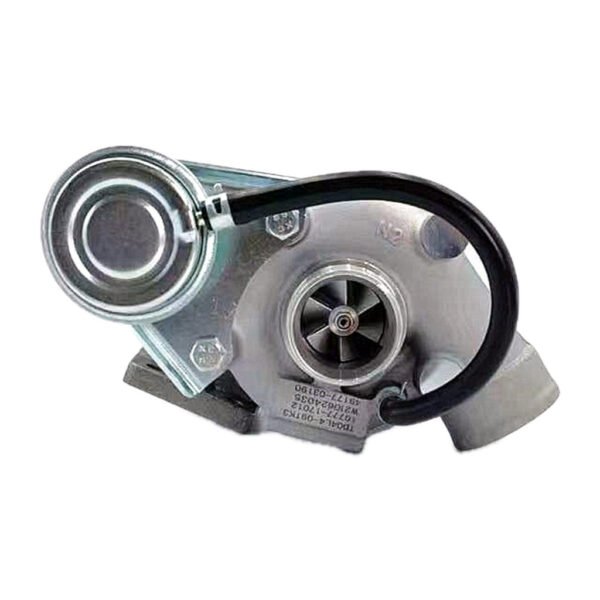

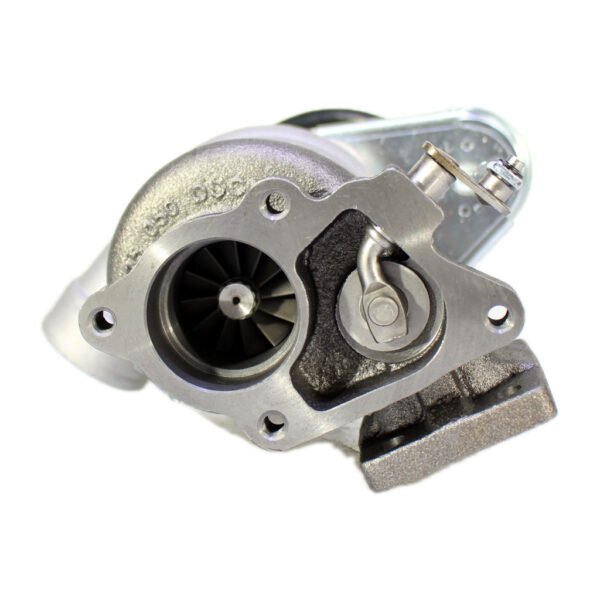

TD04L4 Turbocharger 49177-03193 for Kubota Earthmoving Tractor V3307 3.3L engine

Description

TD04L4 Turbocharger 49177-03193 for Kubota Earthmoving Tractor V3307 3.3L engine.

Turbo Model: TD04L4,TD04L4-09TK3,TD04L4-09TK3-5.0

Part Number: 49177-03193,49177-03190

Interchangeable Number: 4917703193,49177-03190,4917703190,49177-03200,4917703200

OEM Number: 1G777-17012,1G77717012,1G777-17014,1G77717014,1J751-17011,1J75117011,1J752-17012,1J75217012

Engine: V3307-DI-TE3-Q,V3307-DI-T-E3B,Stage 3B（Tier 4）,V3307-DI-T-E3BB

Application

• For Kubota Industrial equipped with V3307-DI-T-E3BB engine
• For Kubota Industrial, Tractor, Various, Earthmoving with V3307-DI-TE3-Q Engine
• For Kubota M6040, M7040, SVL75, SVL90 compact track loaders

Please do the following before installing the turbocharger:

• Make sure it is not an overhaul of the engine. The overhauled engine must be run-in before installing a new turbocharger
• Clean the oil pipe
• Clean the oil pan
• Replace the oil, oil filter, air filter
• Do not apply sealant to the oil hole
