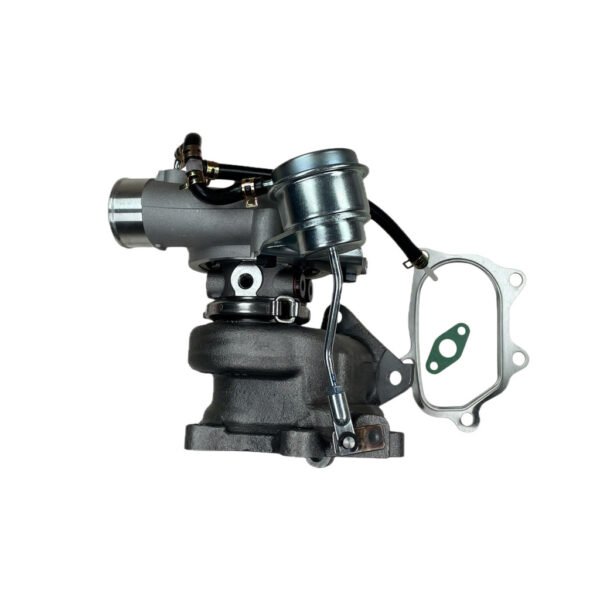

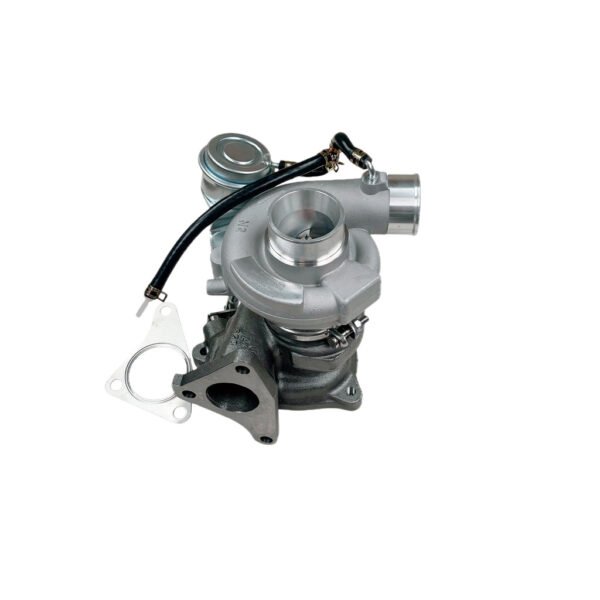

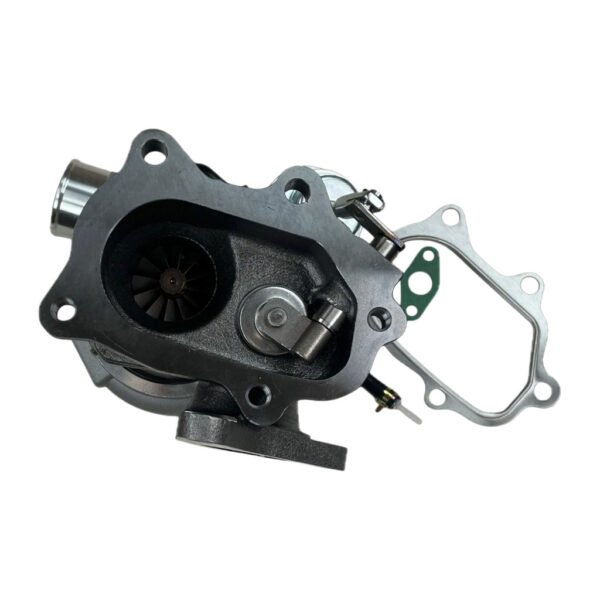

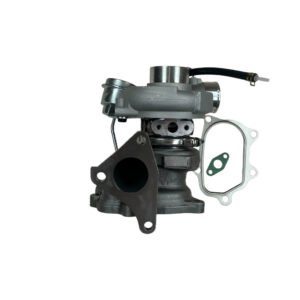

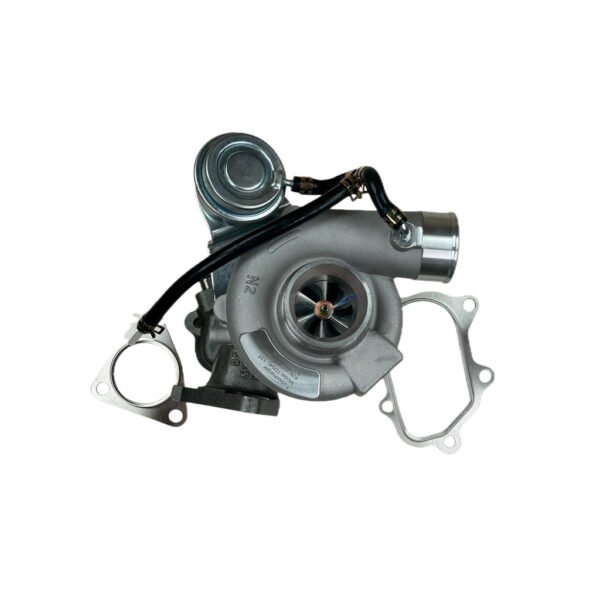

TD04L Turbo 49377-04502 for Subaru Impreza and WRX

Description

TD04L Turbo 49377-04502 for Subaru Impreza and WRX.

Part Number: 49377-04502

4937704502,49377-04552,4937704552,49377-04553,4937704553,49T77-04502,49T7704502

OEM Number: 14411-AA531,14411AA531,14411-AA532,14411AA532,14412-AA451,14412AA451

Turbo Model: TD04L, TD04L-04HL*13T-6.0, TD04L-04HL-13T, 090615051

Year: 1997-

Engine: 58T, EJ205, EJ25

Engine Manufacturer: Subaru

Displacement: 2.0L/2000 ccm, 2.5L/2500 ccm, 4 Cylinders

Fuel: Gasoline

Actuator Pressure (P1): 45.3 +/- 1.3 kPa, 340 +/- 10 mmHg, 6.57 +/- 0.19PSI

Actuator Pressure (P2): 56 +/- 4 kPa, 420 +/- 30 mmHg, 8.12 +/- 0.58 PSI

Actuator: 49477-18943

Back Plate: 49135-15405/49377-00017

Bearing Housing: 49377-20310/49377-25310

CHRA: 49377-08120/49377-08121

Compressor Housing: 49377-58570/49377-58520/49377-58525

Cooling: Water

Gasket (Turbine Inlet): 210657

Gasket (Turbine Outlet): 210637

Repair Kit: 49177-80100/49177-80410

Turbine Housing: 49377-17021/49377-17040/49377-17050

Turbine Wheel: 49177-30300

Application

• Subaru Impreza, WRX
• 2002-07 Subaru WRX, Impreza WRX (Non-STI)
• 2003-Subaru Forester
• 2004-06 Subaru Baja
• 2004-08 Subaru Forester XT
