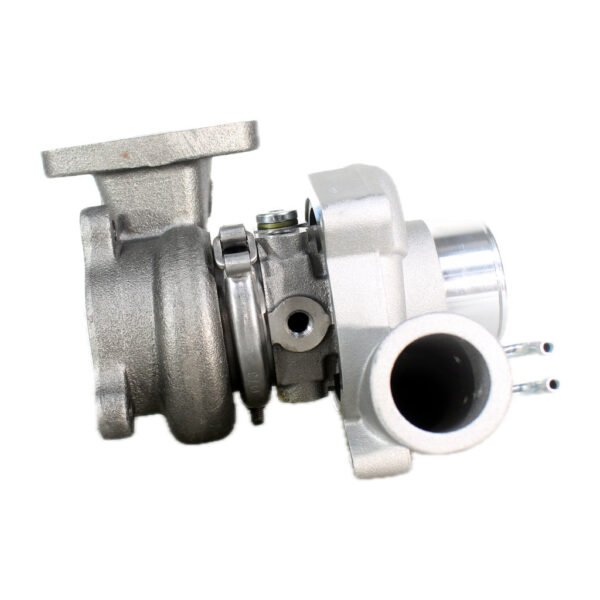

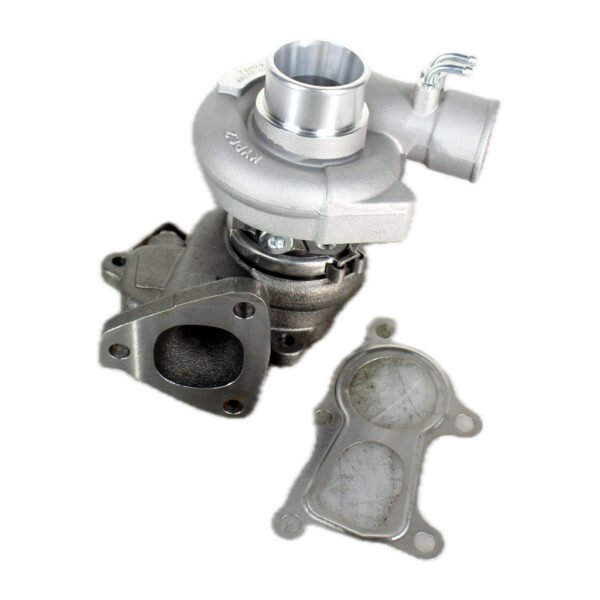

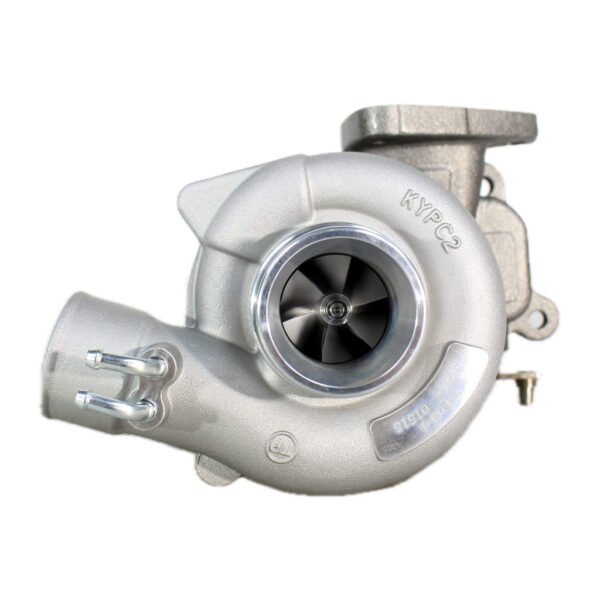

TD04-10T 4 Turbo 49177-01515 for Mitsubishi L300 Star Wagon Delica with 4D56 Engine

Description

TD04-10T 4 Turbo 49177-01515 for Mitsubishi L300 Star Wagon Delica with 4D56 Engine.

Turbo Model: TD04-10T/4

Part Number: 49177-01515

Interchangeable Number: 49177-01513

OEM Number: MR355220

Engine: 4D56T

Application

• 1993- Mitsubishi L300, Star Wagon, Delica with 4D56 Engine

Part Number: 49177-01515

Previous Version: 49177-01513

OEM Number: MR355220

Description: Star Wagon, L300 2.5 TD

CHRA: 49377-08400 (49377-08401)(1401635907)

Turbo Model: TDO4-10T/4

Engine: 4D56T

Displacement 2.5L, 2454 ccm

Power: 64

Fuel Diesel

Bearing Housing: 49377-25100 (W/Cooled)(1401635460)

Turbine Wheel: 49177-30120 (49177-30130)(Ind. 40. mm, Exd. 47.2 mm, 12 Blades) (1401404435)

Comp. Wheel: 49177-44200 (Ind. 35.5 mm, Exd. 49. mm, Trm 52, 6+6 Blades, Flat back

Back plate: 49173-22500 (49135-00044, 49135-15405) (1401404300)

Heat shield Number: 49135-00020 (49135-19100)

Repair Kit: 49177-80410 (1401404755)

Turbine Housing: 49377-15310

Turbine Housing: AR 4.0

Gasket (turbine inlet): 210501 (Stainless Steel)

Gasket (turbine outlet): 210502 (Stainless Steel)

Gasket (oil outlet): 210243 (Paper)

Applications

1993- Mitsubishi L300, Star Wagon, Delica with 4D56 Engine
