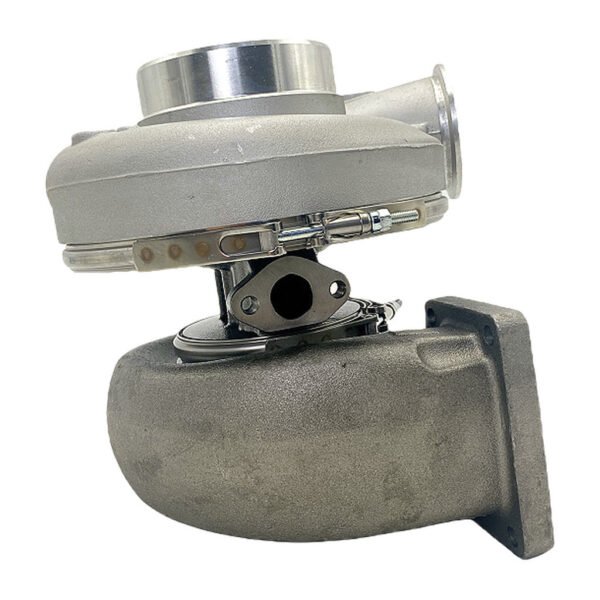

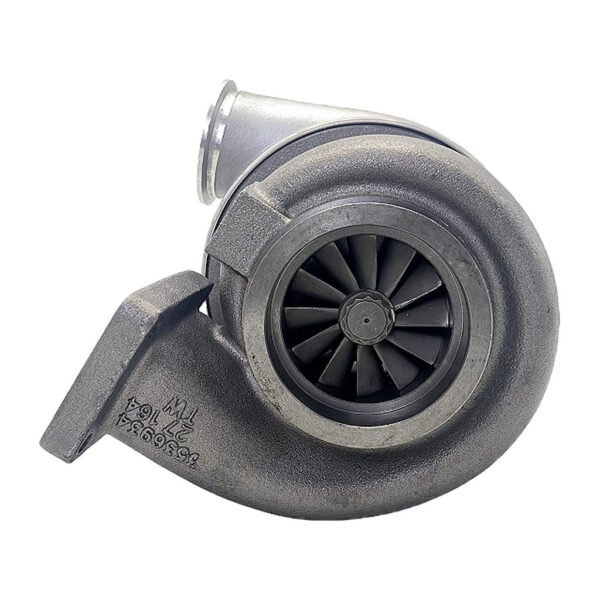

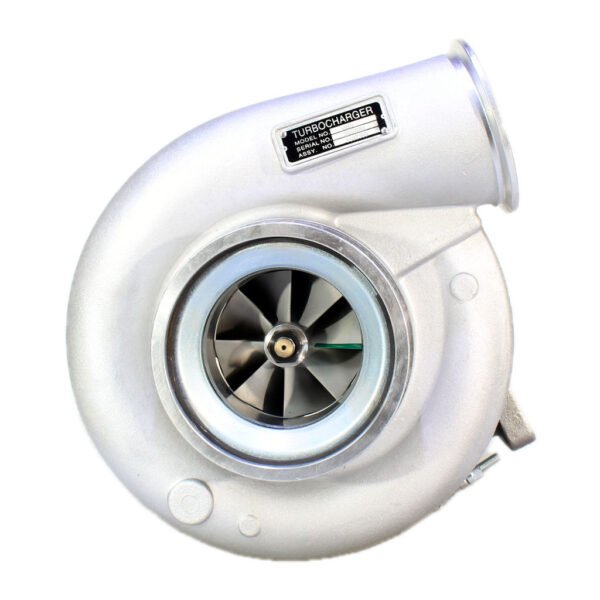

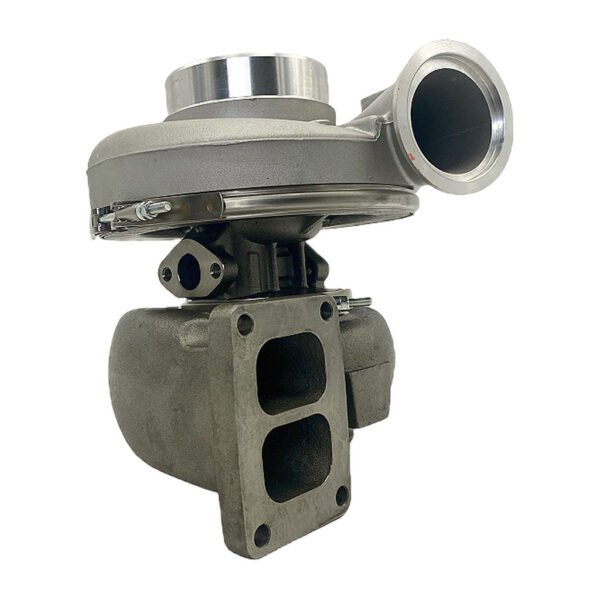

HX60 Turbocharger 3592369 for Cummins Marine QSM11M engine

Description

HX60 Turbocharger 3592369 for Cummins Marine QSM11M engine.

Turbo Model: HX60

Part Number: 3592369

Interchangeable Number: 3592401

OEM Number: 3800852,3800852NX,3800852RX

Engine: M11, ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11

Application

• 1999-06 Cummins Marine with QSM11 Engine

Important: Please use the above information to determine if the parts in this listing are suitable for your vehicle. The most reliable way to ensure the model number of your turbine is to look up the part number from the old turbine’s data plate.

Please do the following before installing the turbocharger:

• Make sure it is not an overhaul of the engine. The overhauled engine must be run-in before installing a new turbocharger
• Clean the oil pipe
• Clean the oil pan
• Replace the oil, oil filter, air filter
• Do not apply sealant to the oil hole
