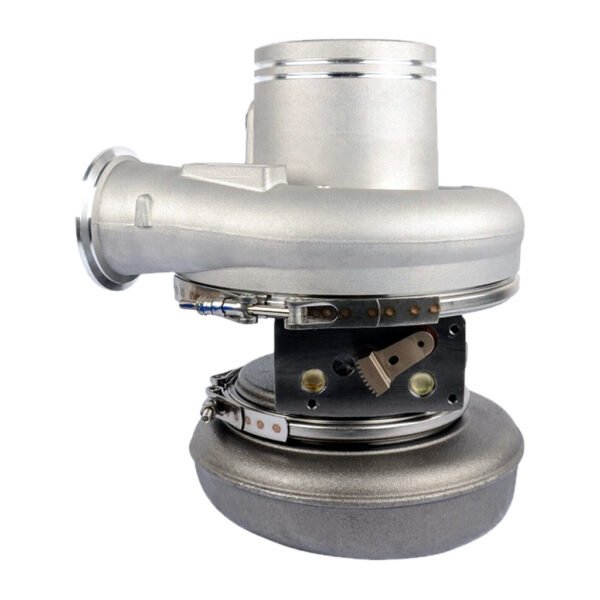

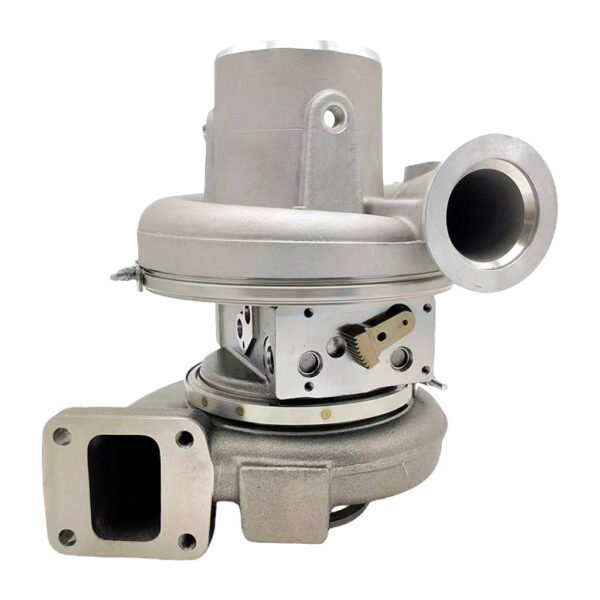

HE500VG HE561V Turbocharger 3774613 for Cummins Coach Transit Bus ISX 15.0L Diesel Engine

Description

HE500VG HE561V Turbocharger 3774613 for Cummins Coach Transit Bus ISX 15.0L Diesel Engine.

Turbo Model: HE500VG HE561V

Part Number: 3774613

Interchangeable Number
2080039R,2836358,2838008,2840523,2840525,2843356,2843359,2881786,2881786NX,2881786RX,2881988RX,2881998,2881998NX,2881998RX,3767616,3767631,3767632,3769880,3769882,3774602,3774641,3776665,3776666,3776669,3781160,4045019,4045032,4048260,4309077,430907700,430907700HX,4309077HX,4309077NX,4309077RX,4955426,4955903,4956011,4956011NX,5350510,5350895,5350895H,5350895HX,5355396,5355404H,5456817,5456817H,5456817HX,5457298,5457298NX,5457298RX,6461256

OEM Number
2836359,2838009,2840524,2843358,3767623,3769881,3774627,4042417,4045035,4048261,5350559,5355404,5456024

Engine: ISL, ISX, ISX-EGR, ISX07, ISX1, ISX15, ISX2

Application

• 2008-11 Various with Cummins ISX07, ISX1 Engine
• Automotive with Cummins ISX Engine
• Coach with Cummins ISX Engine
• Transit Bus with Cummins ISX Engine

Important: Please use the above information to determine if the parts in this listing are suitable for your vehicle. The most reliable way to ensure the model number of your turbine is to look up the part number from the old turbine’s data plate.

Please do the following before installing the turbocharger:

• Make sure it is not an overhaul of the engine. The overhauled engine must be run-in before installing a new turbocharger
• Clean the oil pipe
• Clean the oil pan
• Replace the oil, oil filter, air filter
• Do not apply sealant to the oil hole
