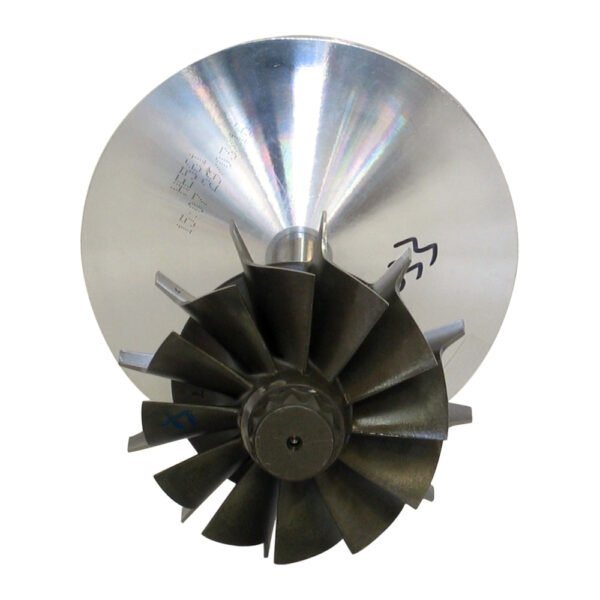

HE351VE Turbo Rotor Assembly for Freightliner

Description

This replacement HE351VE turbo rotor assembly is compatible with the listed applications and reference numbers.

Turbo Models: H300VG, HE300, HE300VG, HE351VE

Material: Steel

Exducer Diameter: 72.25 mm

Inducer Diameter: 85.81 mm

Tip Height: 10.35 mm

Neck Diameter: 14.12 mm

Bore Neck Diameter: 11.06 mm

Material: Aluminum

Inducer Diameter: 70 mm

Exducer Diameter: 109.5 mm

Tip Height: 5.6 mm

Bore Neck Diameter: 11 mm

Overall Length/Height: 54.26 mm

Reference OE/OEM Numbers: 4309232, 4309233, 4309234, 4309237, 4309238, 4309242, 4309244

Compatible Part Numbers: 3780074, 3780079, 3780080, 3780081, 3780082, 3780083, 3780084, 3780085

Compatibility

• 2011- Freightliner, Various with 8.9L Cummins ISC, ISL Diesel Engine
• Dodge Ram Truck with 6.7L Cummins ISM Engine
• Volvo, Peterbilt, Truck with Cummins ISX15 Engine

Notes

• Turbine Shaft Wheel

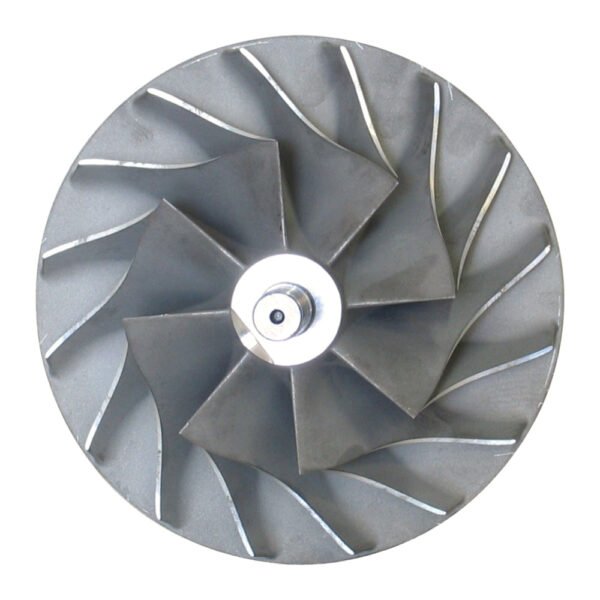

• Compressor Wheel
